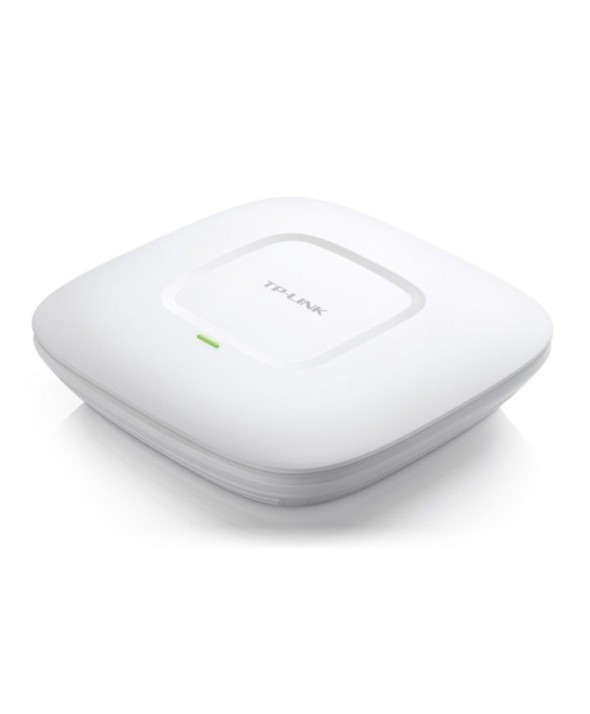

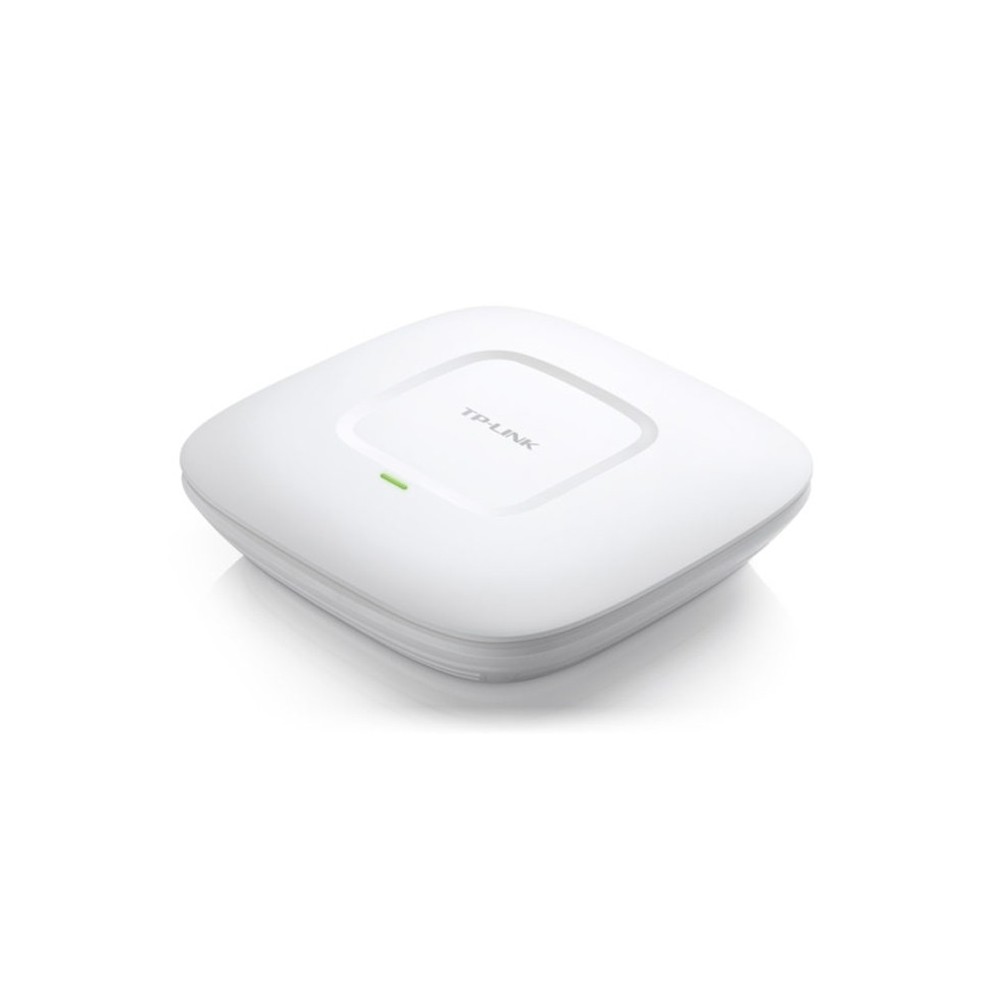

Los puntos de acceso inalámbrico montados en el techo generalmente están asociados con las áreas inalámbricas públicas y de negocios. TP-Link ha lanzado el EAP225, un punto de acceso inalámbrico gigabit de doble banda AC1200, que lo desafía.

Alimentado por el chipset Qualcomm Atheros, el EAP225 admite hasta un máximo de 1200Mbps al combinar simultáneamente las frecuencias de 2.4GHz (300Mbps) y 5GHz (867Mbps). De forma similar, el dispositivo admite Band Steering Automatically, que mueve los dispositivos compatibles a la frecuencia de mayor velocidad para maximizar la velocidad de conexión.

interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）

Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 10.15 W
Antenna Type Internal Omni
2.4GHz: 2* 4dBi
5GHz: 2*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot

Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Package Contents AC1200 Wireless Dual Band Gigabit Access Point EAP225
Power Adapter
Mounting Kits
Installation Guide
